Model | RMSP450V |
Max flow rate(m³/h) | 450 |
Max head(m) | 12 |
Hydraulic flow rate(L/min) | 50 |
Working pressure(bar) | 172 |
Hydraulic tank(L) | 50 |
Fuel tank(L) | 30 |
Fuel type | Gasoline |

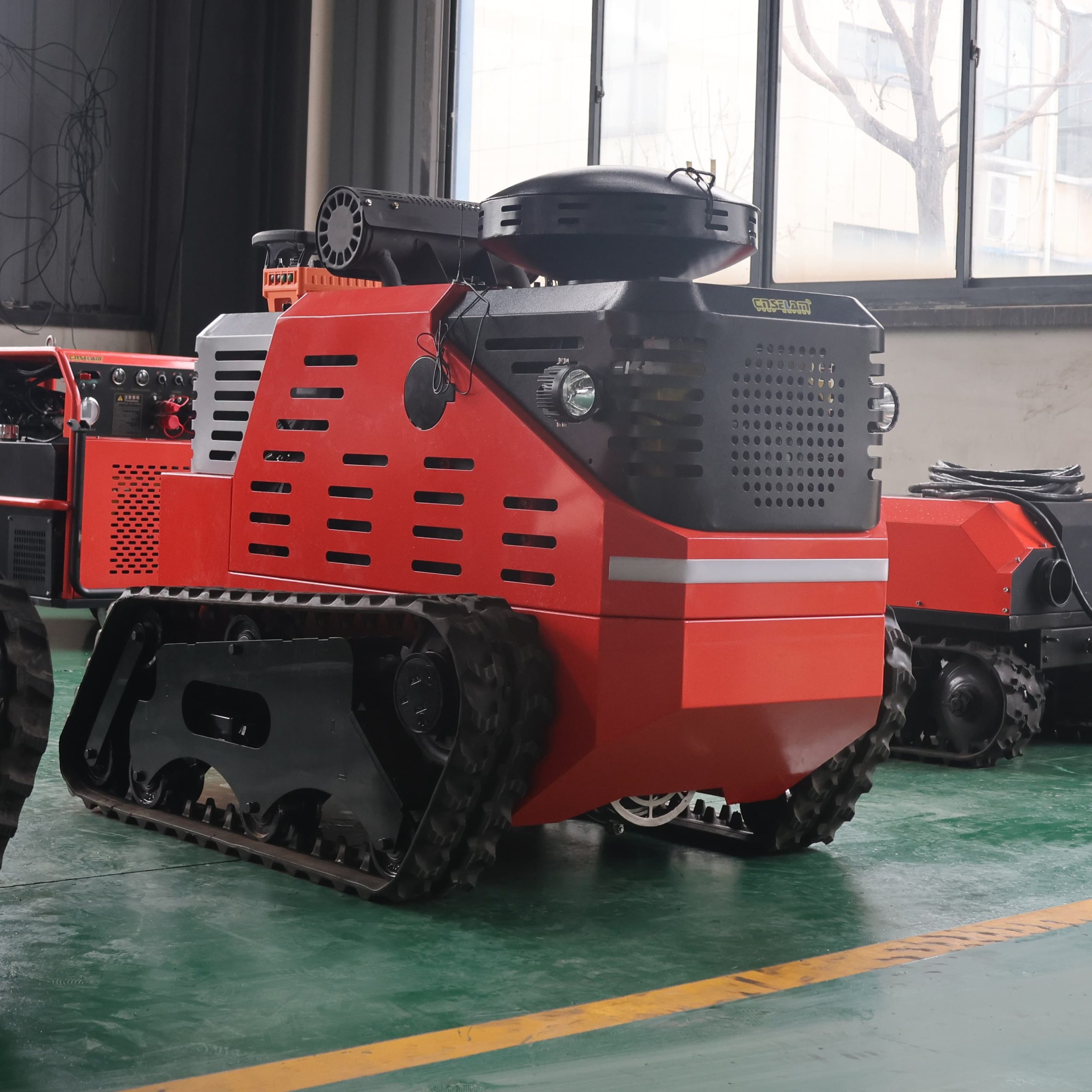

Intelligent drainage equipment RMSP450V
-
Introduction
-
1.Product description
RMSP intelligent drainage equipment is a special intelligent drainage equipment developed to improve the city’s ability to fight floods and rescue emergencies. It has two types of walking mechanisms: crawler type (V-type) and wheel type (W-type). This product adopts the high-efficiency aviation diesel engine as the power source, and the large-flow drainage equipment controlled by the hydraulic transmission system. It is mainly composed of diesel power cabin, equipment shelter, remote control automatic walking and drainage robot and other parts.
The product is suitable for drainage in urban underground garages, underground passages (equipment can go down steps), expressway tunnels, culverts, subways, factories and mines and other low-level areas that are not suitable for personnel to enter.
2.Product Features
1). The equipment is highly mobile and can be mounted on a light transport vehicle to quickly reach the waterlogged area for pumping and drainage operations.
2). The equipment has a large drainage flow, and the pumped water can be delivered to a safe area hundreds of meters away.
3). The walking device and the water pump of the equipment are driven by hydraulic, which runs smoothly and avoids the risk of electricity of traditional water pumps.
4). RMSP intelligent drainage equipment is operated by wireless remote control, equipped with 360-degree panorama dual pan-tilt rotation function, waterproof, lightning protection, high temperature resistance, corrosion resistance, WiFi direct connection without wiring, wireless transmission distance up to 500 meters.
3.Parameter Table
In addition to these products, if you have other parameters and performance requirements please contact us, we will provide you with non-standard product customization services.
Model Max flow
rate(m3/h)Max head(m) Hydraulic flow rate(L/min) Working
pressure(bar)Hydraulic tank(L) Fuel tank(L) Fuel type RMSP450V 450 12 60 140-170 30 30 Gasoline RMW460I 2*230 30 2*30-40 155 // // Diesel RMSP600V 600 15 2*30-40/1*60-80 140-170 60 70 Gasoline RMSP1100V 2*550 10 2*80 172 55 60 Diesel RMSP1100W4 2*550 10 2*80 172 62 62 Diesel RMSP700W6 700 25 2*80 170 70 70 Diesel RMSP1100W6 2*550 10 2*80 172 71 71 Diesel RMSP1200W6 2*600 15 2*60-80/1*120-160 170 70 85 Diesel
