Hydraulic slurry pump mini type HSP65

CNSELAM HSP series ‌hydraulic slurry pump‌ is a type of efficient hydraulic driven fluid conveying equipment, especially suitable for conveying liquid media containing solid particles.Its design enables it to handle liquids with high solid content, such as mortar, mud, etc.

Model	HSP65
Flow rate(m³/h)	65-120
Head(m)	0-60
Outlet diameter(inch)	2.5
Pressure(bar)	280
Hydraulic flow rate (L/min)	40-50
Particle size(mm)	58

1.Product introduction

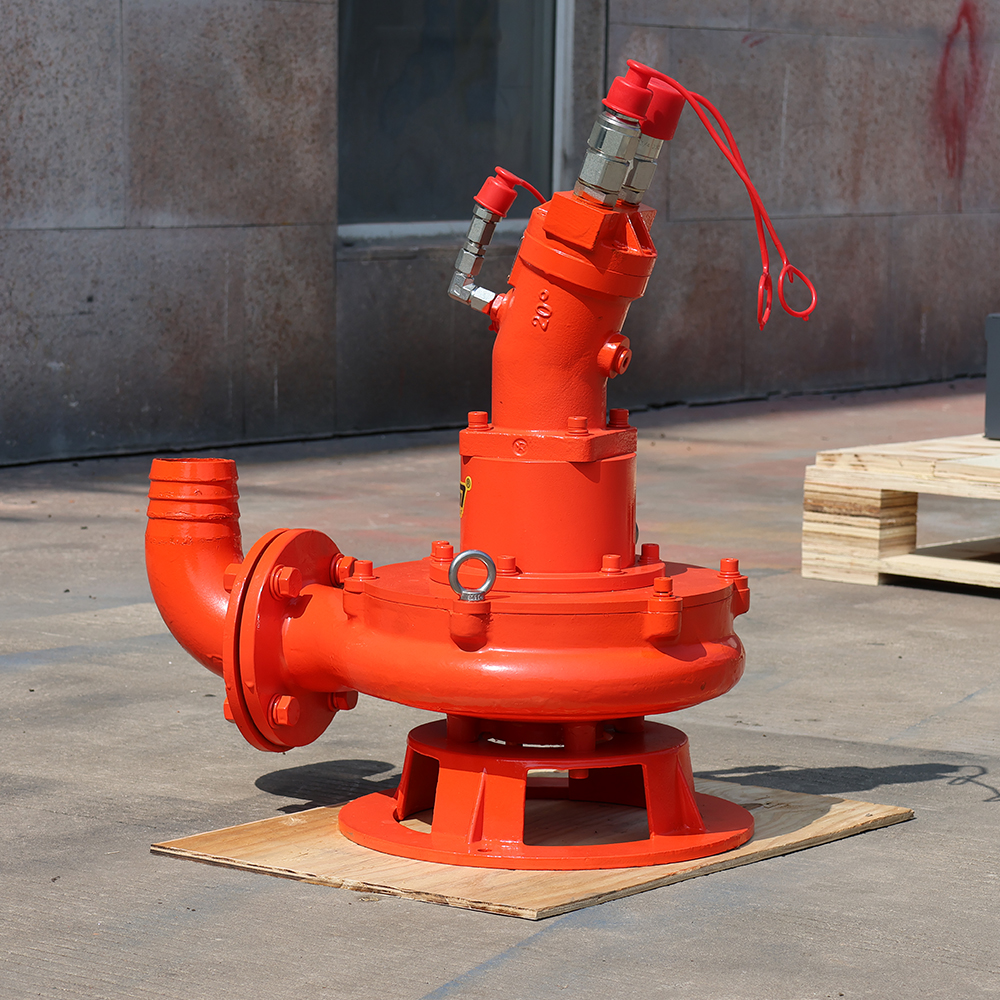

CNSELAM HSP series hydraulic slurry pump housing is made of 304 stainless steel and is cast in one piece. It has the characteristics of light weight and high lift. This pump is specially designed for underwater use and is easy to operate. It is very suitable for emergency rescue and drainage, urban flood control, etc.

2. Fields of product application

Municipal emergency repair and drainage,urban flood control and drainage,inspection well and sewer pipe cleaning and sewage discharge,construction site drainage:water intake from rivers,ditches,and lakes for drought resistance,fire fighting,water supply,sea water extraction,explosion-proof areas,etc.

3.Product Features

1） The overall design of the pump is light, maneuverable and efficient.

2）The pump impeller adopts a vortex design. The rotation of the impeller makes the liquid or slurry in the pump body move in a circular motion, forming a cone under the action of centrifugal force, reducing the contact between the liquid or slurry and the impeller and reducing friction.

3）Hydraulic slurry pumps usually use mechanical seals as shaft sealing devices. Mechanical seals have the advantages of good sealing effect, small leakage and long service life.

4）The hydraulic slurry pump is equipped with a quick connector, which can be plugged and played.

4.Parameter Table

In addition to these products, if you have other parameters and performance requirements please contact us, we will provide you with non-standard product customization services.

Model	Flow rate (m³/h)	Head (m)	Outlet diameter (inch)	Pressure (bar)	Hydraulic flow rate (L/min)	Particle size (mm)
HSP65	65-120	0-60	2.5	280	40-50	58
HSP80	65-120	10-30	3	145	20-30	58
HSP100	120-230	10-40	4	155	30-40	65
HSP150	280-310	15-25	6	155-172	50-60	85
HSP200	450-500	0-12	8	140-190	80-120	100
